MAGIC SWITCH CHROMA

Touchless opening sensor for automatic doors
Technology Radar
Colours:

Description

The MAGIC SWITCH CHROMA is a touchless opening sensor for automatic doors. One hand motion in front of the sensor opens the door, completely contactless. Therefore, it is the perfect knowing act sensor for applications where hygiene is essential: hospitals, clean rooms, hotels & restaurants, pharmaceutical industries, airports, logistics and retail.

Features

Touchless & hygienic

Opening solution reducing touchpoints in public spaces. A builtin silicone seal makes the product completely hermetic and the antimicrobial front face limits the spread of germs, bacteria and fungi.

Multicolour LED & audio signal

With many possible configurations of LED colour, brightness and animation, the MAGIC SWITCH CHROMA offers great user experience. In addition, the audio feedback adds comfort for the visually impaired.

Designed for every environment

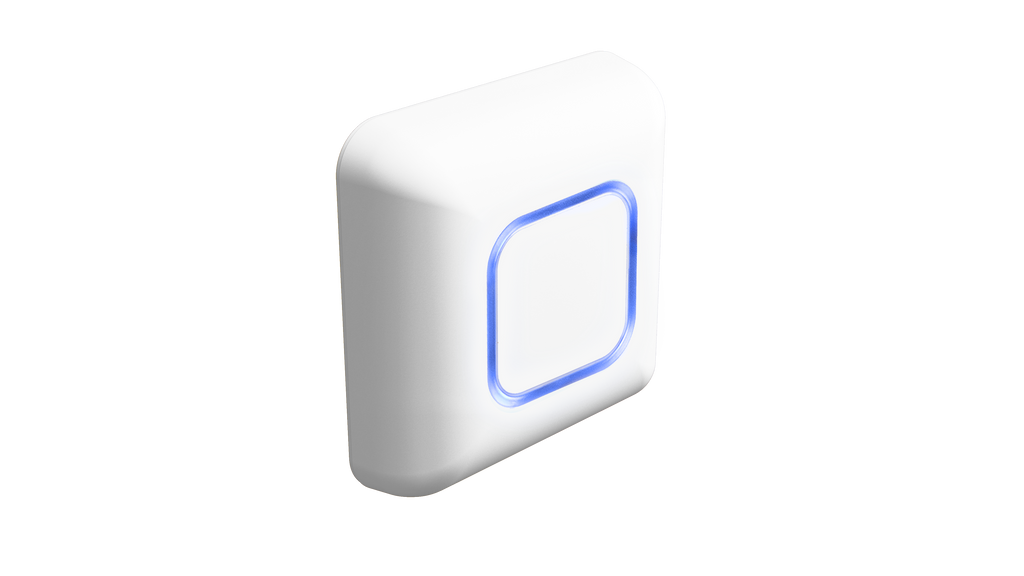

Thanks to a discrete design, a high degree of protection (IP65) and flush or surface mounting possibilities, the MAGIC SWITCH CHROMA blends into any environment and is easy to install and keep clean.

Variety of applications

Touchless opening of any automatic door, comfort for people with disabilities, light switch in toggle mode and many more. Moreover, the MAGIC SWITCH CHROMA ADV is equipped with an external signal input which allows for even more applications like door lock functions in public restrooms.

Detection Field



MAGIC SWITCH CHROMA touchless opening sensor for automatic doors, contactless for hygiene environmnts such as hospitals, clean rooms, hotels, restaurants, pharmaceutical industries, airports, logistics and retail
Table of specifications

Technology

Microwave motion sensor



Radiated frequency

24.150 GHz



Radiated power

< 20 dBm EIRP



Radiated power density

< 5mW/cm2



Detection field size

+/- 10 to 60 cm if movement towards sensor at 90° (adjustable)



Detection mode

Motion (bidirectional)



Speed of target to create detection

Min. 5Hz or +/- 3cm/s, Max. 200Hz or +/- 1.2m/s



Supply voltage

12 - 24V AC +/- 10%
12 - 24V DC +30% / - 10%



Mains frequency

50 - 60 Hz



Power consumption

< 1.5W



Output

Electronic relay (galvanic isolation - polarity free)
Max voltage: 42V AC/DC
Max current: 100 mA



Output holdtime

0.5s (in PULSE mode)



Temperature range

-20°C to +55°C



Degree of protection

MAGIC SWITCH: IP54
MAGIC SWITCH CHROMA: IP65 (if front face and seal mounted on a
smooth surface)



Material

PMMA / PC
MAGIC SWITCH CHROMA front face is treated with biomaster silver
biocide tested to ISO 22196:2011. Please use biocides responsibly



Recommended wiring cable

Stranded cable up to 16 AWG - 1.5mm2



Specifications are subject to changes without prior notice – Measured in specific conditions.

Versions

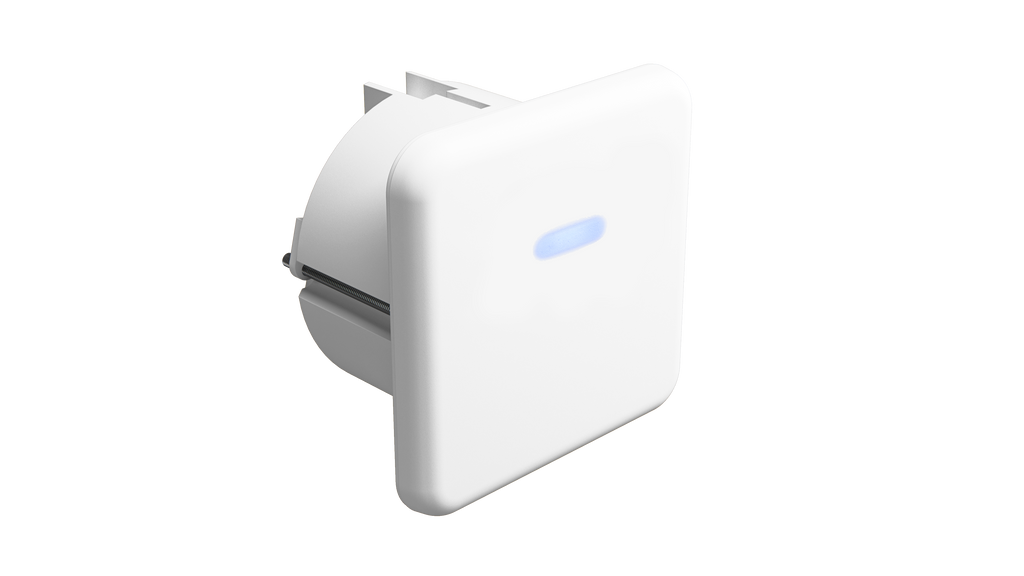

  • MAGIC SWITCH

    • Blue LED
    • IP54
    • Toggle function

  • MAGIC SWITCH CHROMA STD

    • Multicolour LED
    • IP65
    • Toggle function
    • Antimicrobial

  • MAGIC SWITCH CHROMA ADV

    • Multicolour LED
    • IP65
    • Toggle function
    • Antimicrobial
    • Audio signal
    • Remote control settings
    • External signal input

Accessories
