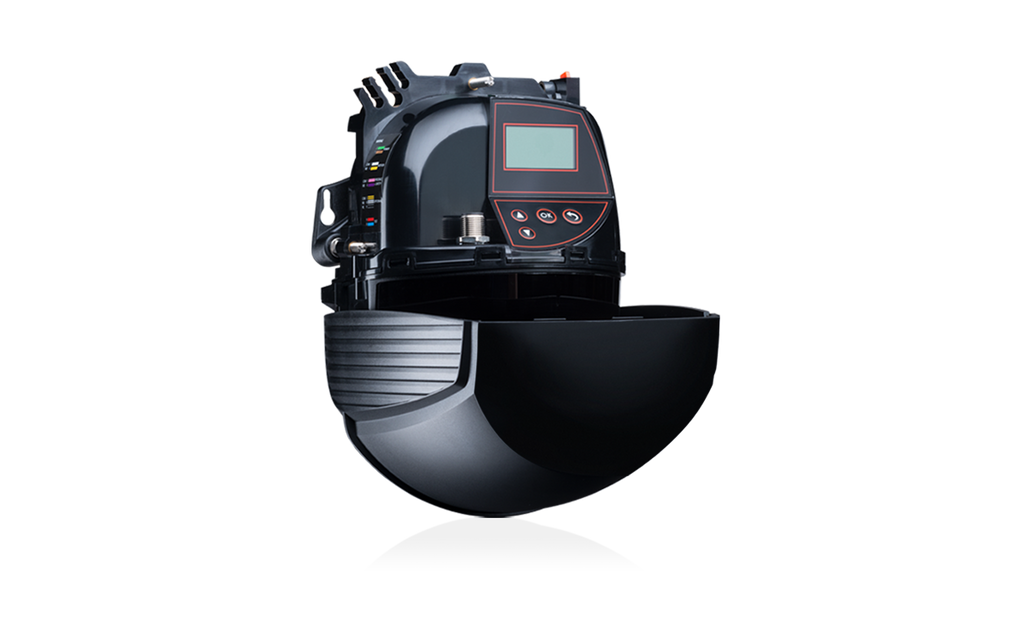

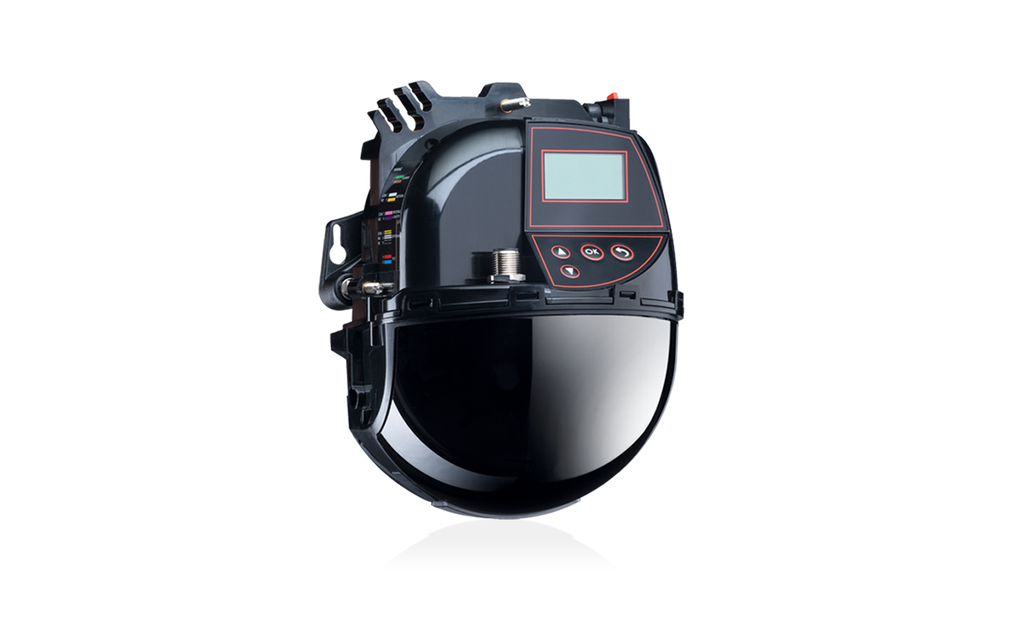

LZR®-WIDESCAN

Opening, area surveillance and safety sensor for industrial doors
Technology Laser
Colours:

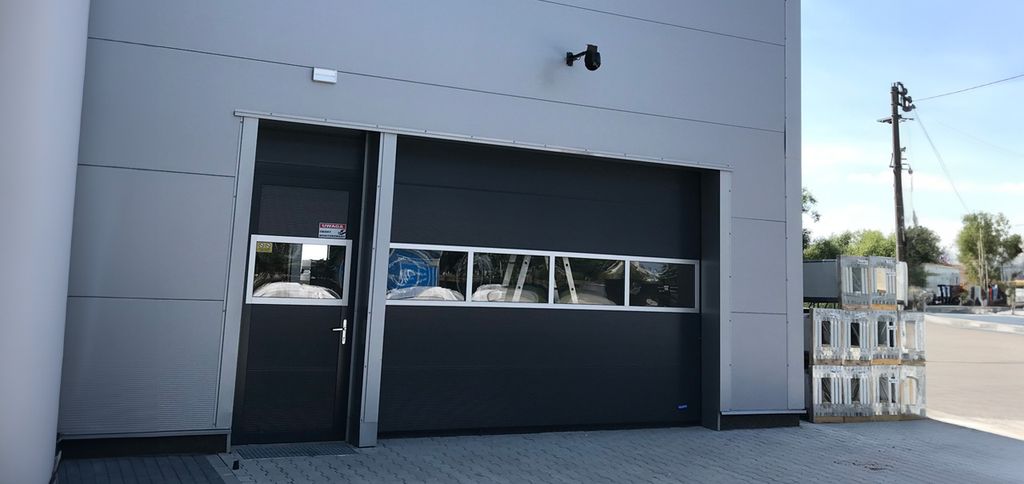

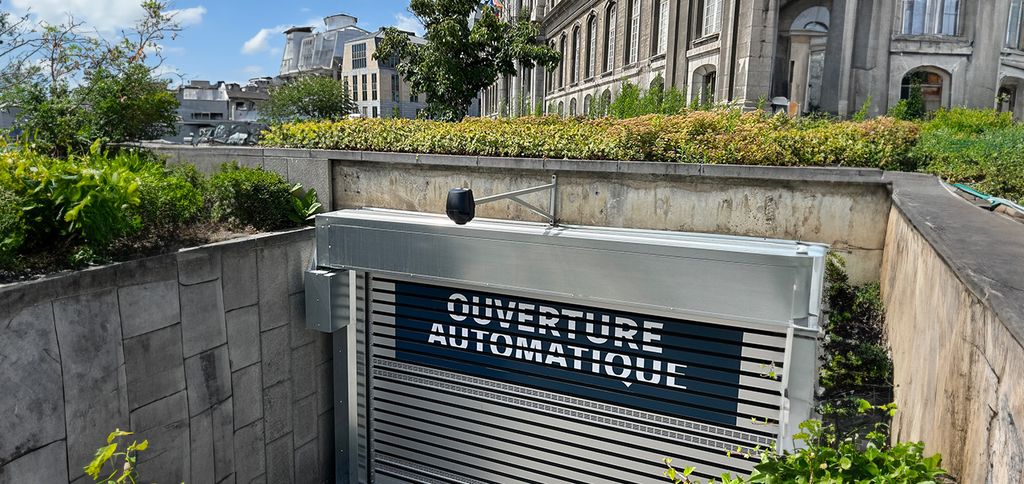

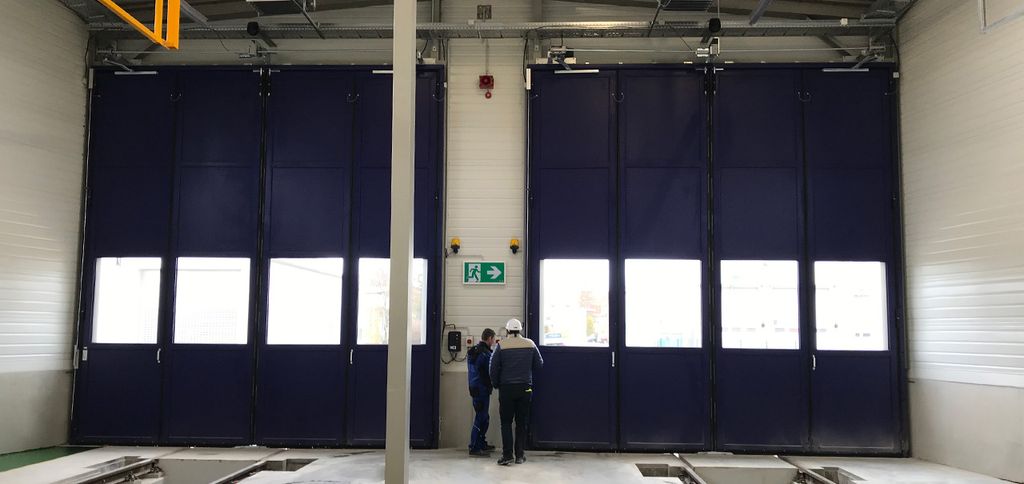

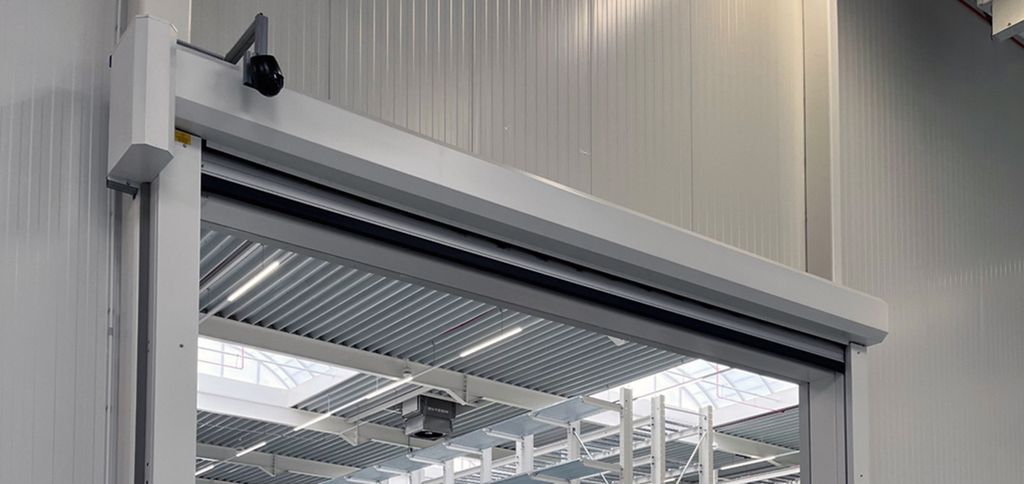

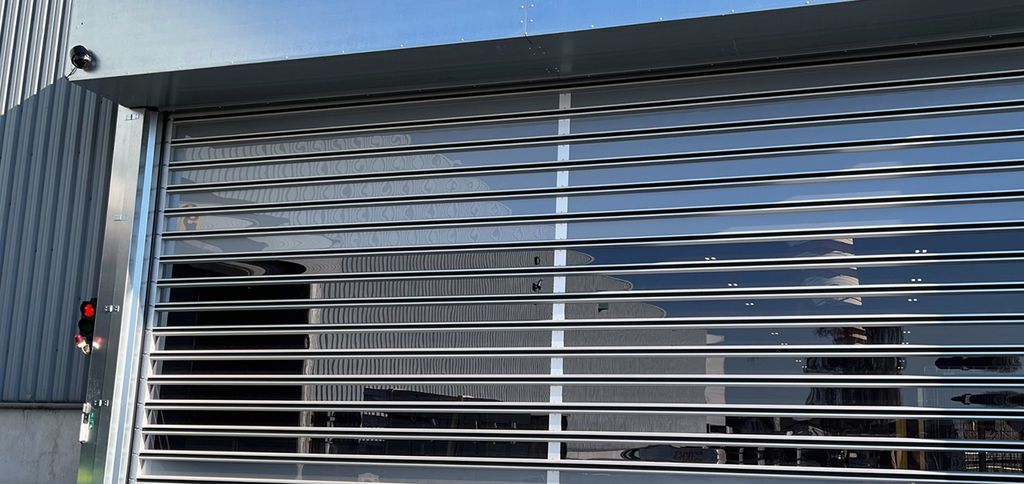

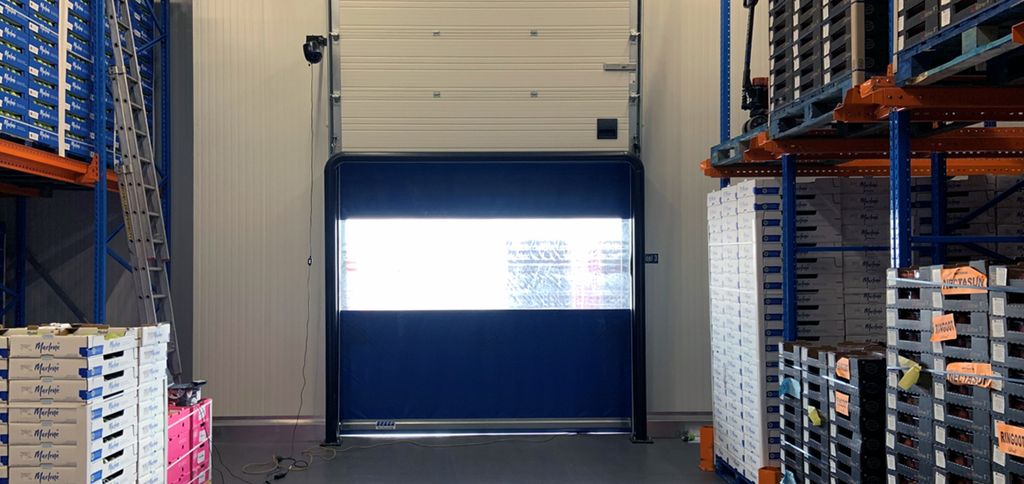

Description

The LZR®-WIDESCAN sensor uses laser technology, based on analysis of time of flight. By generating 7 tilted laser curtains, the sensor creates a volumetric area in front of the door. One device can carry out 3 functions: opening the door, areas surveillance and safety. More than just a sensor, it improves the comfort and safety of the users and increases the protection of the door.
The sensor is easy to install thanks to an intuitive app.

Features

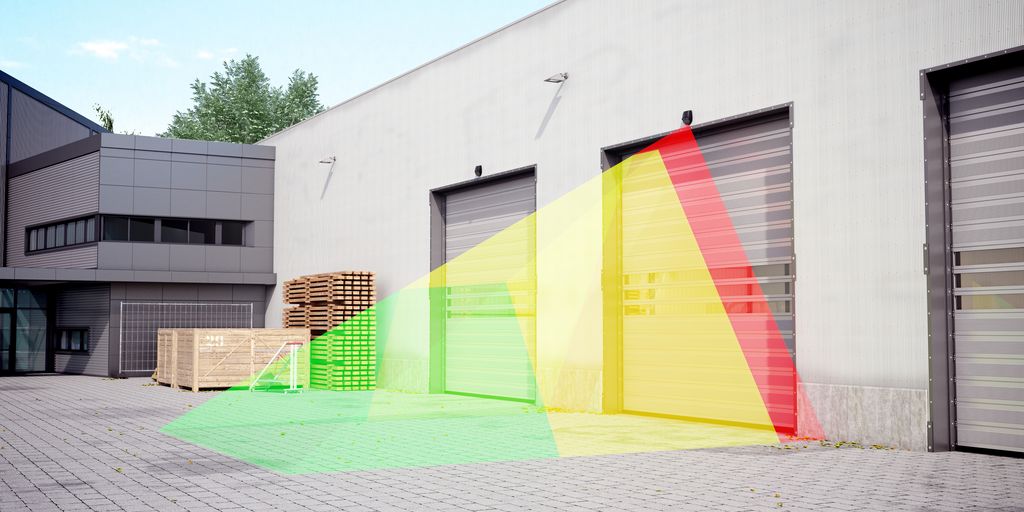

Volumetric coverage

bea-widescan-industrial-field

A matrix of 64 pixels in front of the door enables accurate distance measurement and offers advantages, such as calculation of object dimensions and trajectory.

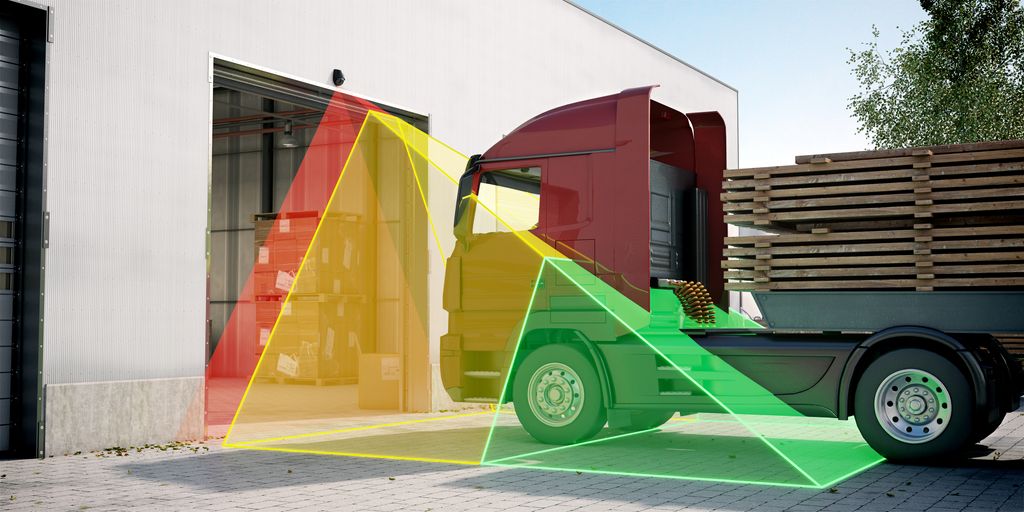

Door protection

bea-widescan-industrial-protection

The LZR®-WIDESCAN becomes your doorkeeper. It detects approaching or parked vehicles accurately in order to prevent any contact with the door.

Energy savings

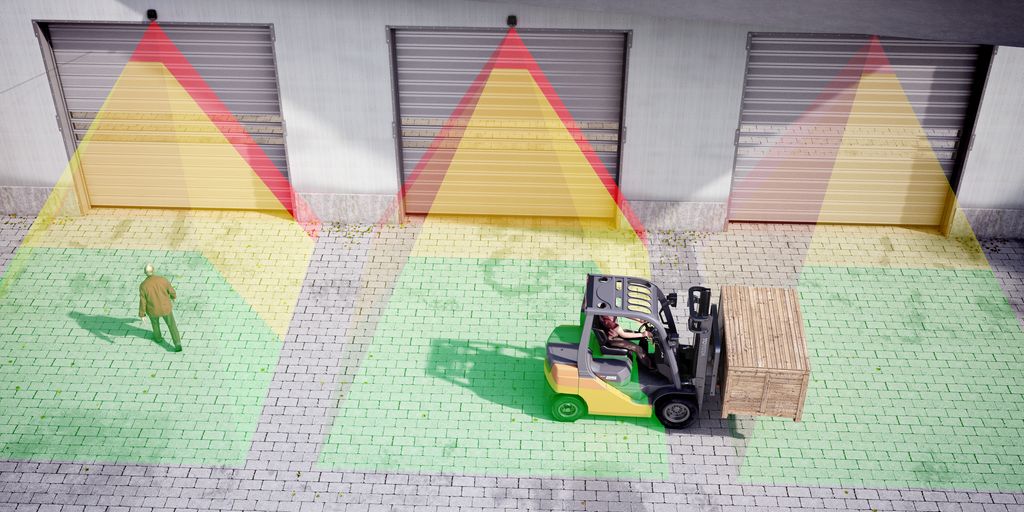

bea-widescan-industrial-energy-saving-rejection-filter-traffic

Thanks to the reliability of its presence detection, the sensor reduces the time-lag and guarantees earlier closing of the door. The analysis of trajectory, height and type of object enable filtering out parallel traffic and ignoring pedestrians if desired.

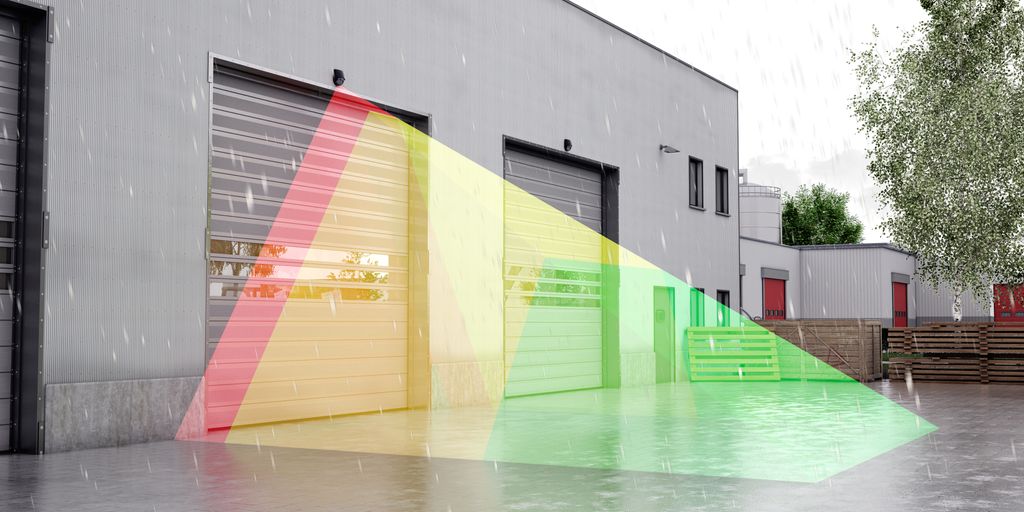

Independent of floor and environment

bea-widescan-industrial-environment-floor

Laser technology offers a high level of independence when confronted with weather conditions such as rain, snow, fog, etc.

Detection field
Table of specifications

Technology

LASER scanner, time-of-flight measurement (7 laser curtains)



Detection mode

Motion, presence, height and speed



Max. detection field

Width: 1 x mounting height; Depth: 1 x mounting height



Thickness of first curtain

0.5 cm / m (mounting height)



Mounting height

2 m to 10 m



Min. reflectivity factor

> 2 % (of floor and object) (measured at max. 6 m in safety field)



Min. object size

70 cm x 30 cm x 20 cm



Emission characteristics
(IEC 60825-1)

IR LASER: Wavelength 905 nm; output power <0.1 mW; Class 1 Visible LASER: Wavelength 635 nm; output power <1 mW; Class 2



Bluetooth communication

Operating bandwidth: 2402 MHz – 2480 MHz
Maximum transmitted power: 12 dBm



Supply voltage

12 V - 24 V AC -10%/+20% ; 12 V - 30 V DC -10%/+20% @ sensor terminal (The
Equipment must be powered by an approved Class II SELV limited power source. This requirement
consists of the need for double insulation between primary voltages and the Equipment supply.
The supply current should be limited to 1.5 A)



Power consumption

heating off: < 2.5 W heating auto: typ. < 10 W, max. 15 W



Response time

Typ. 230 ms; max. 800 ms (depending on immunity settings)



Output

2 solid-state relays ( galvanic isolation - polarity free )
24 V AC/ 30 V DC (max. switching voltage) - 100 mA (max. switching current)
- in switching mode: NO/NC
- in frequency mode: pulsed signal (f= 100 Hz +/- 10%)
1 electro-mechanic relay (galvanic isolation - polarity free)
42 V AC/DC (max. switching voltage) - 500 mA (max. switching current)



Test input

30 V DC (max. switching voltage) - low < 1 V, high > 10 V (voltage threshold)



LED-signals

3 coloured LEDs



Dimensions

45° to the right, 15° to the left ( lockable )



Material / Colour

159 mm (H) x 208 mm (W) x 127 mm (D)



Rotation angles on bracket

PC/ASA / Black



Tilt angles on bracket

45° to the right, 15° to the left ( lockable )



Protection degree

IP65



Temperature range

-30 °C to +60 °C



Norm conformity

This product conforms to all applicable European Union legislation. Please refer to the Declaration of Conformity for further information.



Specifications are subject to changes without prior notice – Measured in specific conditions.

Versions
  • widescan
    LZR®-WIDESCAN

    Opening, area surveillance and safety sensor for industrial doors

Accessories
  • Universal remote control for the adjustments of our sensors.
    BEA REMOTE CONTROL

    Universal remote control for the adjustments of our sensors.

  • UNIVERSAL MOUNTING BA

    Universal mounting bracket

  • LZR®-WIDESCAN BA

    Accessory for alternative mounting (ceiling, wall)

  • LZR®-WIDESCAN RETROFIT ADAPTER

    Wiring accessory to replace a CONDOR, FALCON or MILAN with a LZR®-WIDESCAN for similar functions

Mobile app

The LZR Widescan app makes the invisible visible and eases the installation.
